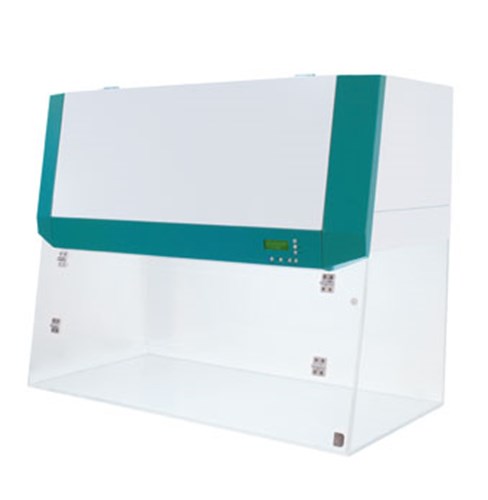

PCR Workstations

Specially designed to minimize the sample contamination during PCR

Brand: Lab Companion

Learn more

Product CodeProduct Product Description Price (Excl gst) Qty Add
JT-AAHB3002K PW-01 PCR Workstation, air volume: 167-557 cmh PW-01 PCR Workstation, air volume: 167-557 cmh Login for price
JT-AAHB3012K PW-11 PCR Workstation, air volume: 209-697 cmh PW-11 PCR Workstation, air volume: 209-697 cmh Login for price
JT-AAHB3022K PW-21 PCR Workstation, air volume: 279-929 cmh PW-21 PCR Workstation, air volume: 279-929 cmh Login for price

Go to checkout

Performance

  • ISO class 4 (US class 10) HEPA filter for optimal protection against cross-contamination.
    (average life span of HEPA filter: 3 years – it depends on the test room conditions)
  • High-quality polyester fiber pre-filter (with minimal pressure loss and 85% arrestant on the A.F.I. test) for trapping larger particles and increasing the life of the main HEPA filter.
  • Effective sterilization using a long-life 254 nm UV lamp. (average life span of UV lamp: 8,000 hours)
  • Built in anti-glare fluorescent lamp minimizes shadows and relieves eye strain.

Convenience

  • User-friendly microprocessor-based control panel.
  • Large capacity blower and easy blower speed adjustment by the control panel.
  • Easy-settable digital timer for UV light exposure to deactivate DNA and RNA contaminants. (wait off, max. 30min.)
  • Comfortable front access to cartridge type of filters for easy replacement.

Safety

  • Interlocking safety door system shuts off UV light automatically when opening the door.
  • UV-blocking door and side panels made of transparent acrylic resin provides clear inside view.
  • UV over-exposure alarm and over-current protection.

Available Accessories & Options

  • HEPA filter (for PW)
  • Pre filter
  • Fluorescent lamp
  • UV lamp
Model PW-01 PW-11 PW-21

Air flow type

Vertical

Max. air volume (cmh / cfm)

557 / 327

697 / 408

929 / 546

Min. air volume (cmh / cfm)

167 / 97

209 / 121

279 / 162

Laminar airflow velocity (m / s / fpm)

0.3 / 60

Filter

Air cleanliness

ISO 14644-1 class 4

HEPA filter

Typical efficiency of 99.99% at 0.3 ㎛ US MIL-STD -282
; Micro glass fiber media, Particle board, Aluminum separator, Neoprene gaskets

Pre filter

Polyester fibers with an efficiency of 85% (A·F·I TEST); AL frame, Polyester fiber media

Noise level (dBA)

Typically < 60 dBA at blower speed

Material

Work surface

10mm thick acrylic resin (clear type)



Window (front, side / back)

8mm / 10mm thick acrylic resin (clear type)

Illumination

Intensity

Fluorescent lamp (lux)

>1000

UV density (㎼ / ㎠)

165

185

330

Capacity

Fluorescent lamp (w)

15 × 1ea

20 × 1ea

30 × 1ea

UV lamp (w)

15 × 1ea

20 × 1ea

30 × 1ea

Dimension(W×D×H)

Interior (mm / inch)

700×585×602 / 27.5×23×23.7

880×585×602 / 34.6×23×23.7

1180×585×602 / 46.5×23×23.7

Exterior (mm / inch)

720×605×964 / 28×24×38

900×605×964 / 35.4×24×38

1200×605×964 / 47.2×24×38

Net weight (Body) (kg / lbs)

56.2 / 123.9

64.2 / 141.5

77.8 / 171.5

Electrical  requirements (230V)

50Hz, 1.3A 50Hz, 1.4A 50Hz, 1.5A
Cat. No. AAHB3002K AAHB3012K AAHB3022K
