Clean Benches (Basic)

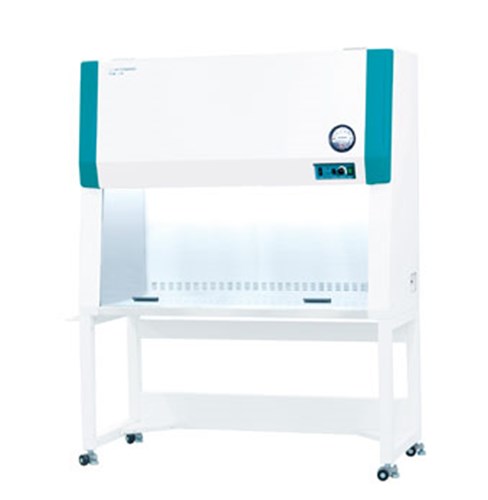

Vertical laminar flow clean benches offer quick operation by simple-adjustable analog control. Photo: with optional stand and Hepa filter

Brand: Lab Companion

Learn more

Product CodeProduct Product Description Price (Excl gst) Qty Add
JT-AAHA6012K BC-01B Clean Bench (Basic), interior dimensions 945×570×670 mm BC-01B Clean Bench (Basic), interior dimensions 945×570×670 mm Login for price
JT-AAHA6022K BC-11B Clean Bench (Basic), interior dimensions 1245×570×670 mm BC-11B Clean Bench (Basic), interior dimensions 1245×570×670 mm Login for price
JT-AAHA6032K BC-21B Clean Bench (Basic), interior dimensions 1845×570×670 mm BC-21B Clean Bench (Basic), interior dimensions 1845×570×670 mm Login for price

Go to checkout

Performance

  • ISO class 4 (US class 10) HEPA filter for optimal protection against cross-contamination.
  • 0.3 μm and larger particulates are removed with 99.99% efficiency, leak-tight HEPA filter which satisfying class 10.
    (US Federal Standard 209E)
    (average life span of HEPA filter: 3 years – it depends on the test room conditions) (optional)
  • High-quality polyester fiber pre filter (with minimal pressure loss and 85% arrestant on the A.F.I. test) for trapping larger particles and increasing the life of the main HEPA filter.
  • Exclusive diffusing muffler structure forms high quality laminar flow.
  • Quiet and comfortable working environment. (less than 65dB)

Convenience

  • Built-in differential pressure gauge for easy checking HEPA filter condition.
  • Comfortable front access to cartridge type of filters for easy replacement.
  • Easy blower speed adjustment by the control panel.
  • Highly durable, rust-free, and easy-to-clean grade 304 stainless steel work surface.
  • The inner left side magnetic board allows some memos and small tools.

Safety

  • UV-blocking and impact-resistant tempered glass door.
  • If the sash is opened during UV-lamp operation, UV lamp automatically turns off to protect users.
  • Lighting mode selection by 3-position toggle switch (UV / off / fluorescent) preventing harmful UV exposure.
  • Smoothly sliding front door stoppable at any height for user’s safety and easy transport of equipment into the workspace.
  • Protection against over-current.

Available Accessories & Options

  • HEPA filter - 99.99% efficient HEPA filter, industry standard size for economical replacement.
  • Stand with casters - Mobile stand made of powder-coated steel ideal for easy relocation.
  • Pre filter - Easy-to-replace pre-filter for trapping larger particles and extending the life of HEPA filters.
  • UV lamps
Model BC-01B BC-11B BC-21B
Air flow type Vertical laminar flow
Air volume (minimum / maximum) 0 to 1020 cmh / 0 to 600 cfm 0 to 2040 cmh / 0 to 1200 cfm
Laminar airflow velocity (m / s / fpm) 0.3 / 59 0.45 / 89 0.3 / 59
Air cleanliness within work space ISO 14644-1 class 4, US Federal Standard 209E class 10
Filters HEPA filter
Typical efficiency of 99.99% on 0.3㎛ (US MIL- STD -282)
; Micro glass fiber Media, Particle board, AL separator, Neoprene gaskets
Pre filter
Polyester fibers with an filter efficiency of 85% (A·F·I TEST)
; Aluminum frame, Polyester fiber media
Noise level Typically < 65dB at blower speed
Materials Main body Steel powder coating
Work surface Stainless steel grade 304, Hairline treatment
Windows (front / side) Colorless and transparent UV absorbing 5mm tempered glass
Illumination Intensity (lux) > 650
Fluorescent lamp (W) 30 x 2ea 32 x 2ea
Electronically ballasted Fluorescent Lamp
UV lamp (W) 25 x 1ea 30 x 1ea 25 x 2ea
Electronically ballasted UV Lamp
Electric socket outlets 230V socket
Dimension(W×D×H) Interior (mm / inch) 945×570×670
/ 37.2×22.4×26.4
1245×570×670
/ 49.0×22.4×26.4
1845×570×670
/ 72.6×22.4×26.4
Exterior without stand (mm / inch) 1135×647×1150
/ 44.7×25.5×45.3
1435×647×1150
/ 56.5×25.5×45.3
2035×647×1150
/ 80.1×25.5×45.3
Exterior with stand (mm / inch) 1135×647×1870
/ 44.7×25.5×73.6
1435×647×1870
/ 56.5×25.5×73.6
2035×647×1870
/ 80.1×25.5×73.6
Net weight (body) (kg / lbs) 140 / 308.6 185 /407.9 225 / 496
Net weight (body + stand) (kg / lbs) 170 / 374.8 215 / 474 255 / 562.2
Electrical requirements (230V, 1ph) 50Hz / 1.38 A 50Hz / 1.73 A 50Hz / 2.30 A
Cat. No. AAHA6012K AAHA6022K AAHA6032K

※Permissible environmental conditions: temperature (5-40°C) and relative humidity (up to 80%).
