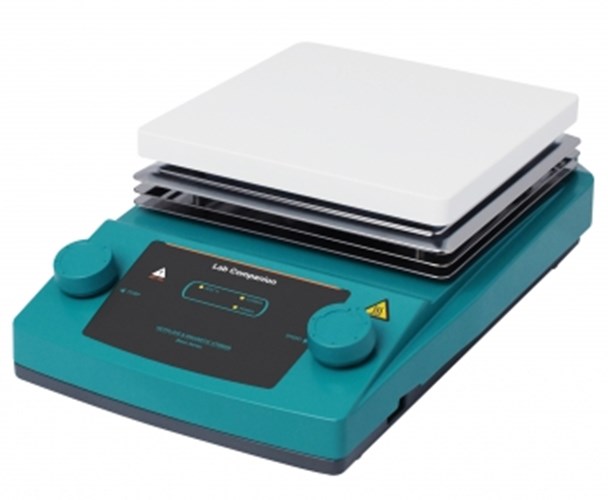

Performance & Convenience
- Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability.
- Fast and precise stirring operations are enabled by BLDC motor and special magnet with extremely strong magnetic coupling power.
- Instant halt of the stirring operation due to the exceptionally fast response characteristics.
- Smooth-start mechanism provides virtually no decoupling of stir bars even with viscous media.
- Large stirring capacity up to 20 liter in case of water.
- Non-slip heating bath with concavo-convex bottom prevents unintentional slips of the bath. (optional)
- A transparent safety shield protects users from liquid splashes. (optional)
- Support rod allows for diverse flexibility in configuring other test equipment and accessories. (optional)
Safety
- Built in thermal shutdown and current limit protection.
- Hot top warning Indicator for preventing accidental injuries.
- ※ CSA except for TM-18Q. ※ RoHS for TM-14SB.
Available Accessories & Options
- Magnetic stirring bars
- Plastic retrievers
- Support rod / Clamp holders
- Temperature probes
- Heating baths
- Transparent safety shields
- Sensor Holder
| Model |
TM-14SB |
TM-14RB |
TM-17SB |
TM-17RB |
TM-18Q |
|
Heating
|
Temperature range (℃ / ℉)
|
Max. 350 / 662
|
|
Control
|
Scale
|
|
Heating power (W)
|
600
|
800
|
|
Stirring
|
Speed range (rpm)
|
50 to 2,000
|
|
Capacity
(L / cu ft, H2O)
|
20 / 0.71
|
|
Magnetic bar, Max.
(ØxL, mm / Inch)
|
8 x 40 / 0.31 x 1.57
|
|
Safety
|
Hot top indicator (℃ / ℉)
|
Warning lamp (50 / 122)
|
|
Over temp.
|
Top plate / Main body / PCB
|
|
Over current
|
Current limit protection
|
|
Motor
|
BLDC motor
|
|
Load, Max. (kg / Ibs)
|
25 / 55.12
|
|
Top plate
|
Shape
|
Round type
|
Square type
|
|
Material
|
Ceramic coated aluminum
|
|
Dimension
(Ø or WxD) (mm / inch)
|
140 / 5.51
|
170 / 6.69
|
180x180/ 7.08x7.08
|
|
Body
|
Shape
|
Straight body
|
Round handles
|
Straight body
|
Round handles
|
Straight body
|
|
Material
|
Aluminum
|
|
Dimension
(WxDxH) (mm / inch)
|
161x290x100/ 6.34x11.42x3.94
|
210x294x99/ 8.27x11.57x3.9
|
191x330x101/ 7.52x12.99x3.98
|
240x324x100/ 9.45x12.76x3.94
|
209x326x102/ 8.22x12.83x4.0
|
|
Net weight (kg / Ibs)
|
2.8 / 6.17
|
3 / 6.61
|
3.5 / 7.72
|
3.6 / 7.94
|
3.8 / 8.37
|
|
Electrical requirements
(230V, 50/60Hz)
|
3.0 A |
4.0 A |
| Cat. No. |
AAH34215K |
AAH34315K |
AAH34225K |
AAH34325K |
AAH34235K |
※ Permissible environmental conditions: temperature (5-40℃) and relative humidity (up to 80%).
※ CSA except for TM-18Q. ※ RoHS for TM-14SB.
