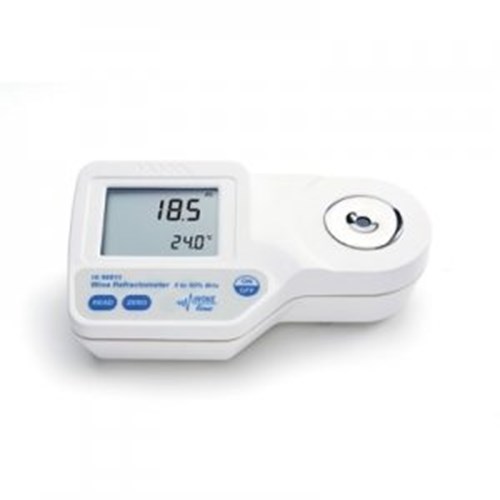

HI96811 digital refractometer for brix analysis in wine

The HI96811 is a rugged, portable digital refractometer designed for sugar measurement of wine, juice and must. The HI96811 reports sugar content as % Brix and has a high accuracy of ±0.2%. The operation of the meter is simplified with only two buttons: one button is to calibrate with distilled or deionized water and the other to take a measurement. All readings are automatically compensated for temperature variations according to the ICUMSA Methods Book standard and displayed within a 1.5 second response time.

Brand: Hanna

Learn more

Product CodeProduct Product Description Price (Excl gst) Qty Add
HA-HI96811 HI96811 digital refractometer for brix analysis in wine HI96811 digital refractometer for brix analysis in wine Login for price

Go to checkout

The HI96811 Digital Wine Refractometer converts the refractive index of a wine, juice or must sample to % Brix. This conversion is based on the tables found in the ICUMSA Methods Book (International Commission for Uniform Methods of Sugar Analysis) that documents the changes in refractive index with temperature for a percent by weight sucrose solution. Since the majority of sugar in grape juice and must is fructose and glucose instead of sucrose, the reading is sometimes referred to as “Apparent Brix”. Typical grapes at harvest will be between 19-24% Brix or degrees Brix (°Bx). The HI96811 is an easy-to-use tool for winemakers for measuring sugar in grapes or must, in the field or in the lab.

Features

  • One-point calibration
    • Calibrate with distilled or deionized water
  • Small sample size
    • Sample size can be as small as 2 metric drops (100 μl)
  • Automatic Temperature Compensation (ATC)
    • Samples automatically compensated for temperature variations
  • Quick, accurate results
    • Readings are displayed in approximately 1.5 seconds
  • Dual-level LCD
    • The dual-level LCD displays % Brix and temperature readings simultaneously
  • Stainless steel sample well
    • Easy to clean and corrosion-resistant
  • Battery indicators
    • Battery percent level remaining at startup and low battery indicator
  • Automatic shut-off
    • To conserve battery life the meter shuts off automatically after three minutes of non-use
  • IP65 water resistant protection
    • Water resistant ABS plastic casing designed to perform under laboratory and field conditions.

Sugar Content Range 0 to 50% Brix
Sugar Content Resolution 0.1% Brix
Sugar Content Accuracy (@25ºC/77ºF) ±0.2% Brix
Temperature Range 0 to 80°C (32 to 176°F)
Temperature Resolution 0.1°C (0.1°F)
Temperature Accuracy ±0.3 °C (±0.5 °F)
Temperature Compensation automatic between 10 and 40°C (50 to 104°F)
Measurement Time approximately 1.5 seconds
Minimum Sample Volume 100 μL (to cover prism totally)
Light Source yellow LED
Sample Cell stainless steel ring and flint glass prism
Auto-off after three minutes of inactivity
Enclosure Rating IP65
Battery Type / Life 9V / approximately 5000 readings
Dimensions / Weight 192 x 102 x 67 mm (7.6 x 4.01 x 2.6”) / 420 g (14.8 oz.)
Ordering Information HI96811 is supplied with battery and instruction manual
Warranty 2 years
