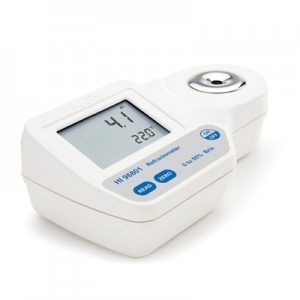

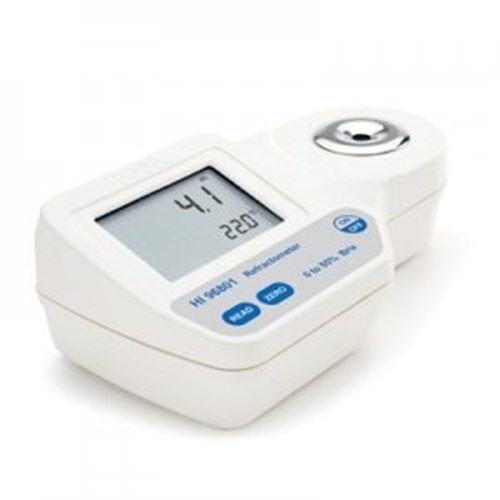

HI96801 digital refractometer for brix analysis

HA-HI96801

The HI96801 is a rugged, portable digital refractometer for food products designed to report the sugar content of aqueous solutions as % Brix. The HI96801 report the results with an accuracy of ±0.2% Brix. The operation of the meter is simplified with only two buttons: one button is to calibrate with distilled or deionized water and the other to take a measurement. All readings are automatically compensated for temperature variations according to the ICUMSA Methods Book standard and displayed within a 1.5 second response time.

Brand: Hanna

Learn more

Select your options below

Product CodeProduct	Product Description	Price (Excl gst)	Qty	Add
HA-HI96801 HI96801 digital refractometer for brix analysis	HI96801 digital refractometer for brix analysis	Login for price

Go to checkout

The HI96801 portable refractometer converts the refractive index of a food sample to % brix. This conversion is based on the tables found in the ICUMSA Methods Book (International Commission for Uniform Methods of Sugar Analysis) that documents the changes in refractive index with temperature for a percent by weight sucrose solution. The HI96801 is ideal for the analysis of fruits, energy drinks, puddings, soy milk, juices, jam, marmalade, honey, soups, jelly, tofu and condiments. The HI96801 is an easy to use tool for measuring sugar in food samples in the field or in the lab.

Features

One-point calibration
- Calibrate with distilled or deionized water
Small sample size
- Sample size can be as small as 2 metric drops (100 μl)
Automatic Temperature Compensation (ATC)
- Samples automatically compensated for temperature variations
Quick, accurate results
- Readings are displayed in approximately 1.5 seconds
Dual-level LCD
- The dual-level LCD displays measurement and temperature readings simultaneously
Stainless steel sample well
- Easy to clean and corrosion-resistant
Battery indicators
- Battery percent level remaining at startup and low battery indicator
Automatic shut-off
- To conserve battery life the meter shuts off automatically after three minutes of non-use
Stainless steel sample well
- Easy to clean and corrosion-resistant
IP65 water resistant protection
- Water resistant ABS plastic casing designed to perform under laboratory and field conditions.

Sugar Content Range	0 to 85% Brix
Sugar Content Resolution	0.1% Brix
Sugar Content Accuracy (@25ºC/77ºF)	±0.2% Brix
Temperature Range	0 to 80°C (32 to 176°F)
Temperature Resolution	0.1°C (0.1°F)
Temperature Accuracy	±0.3 °C (±0.5 °F)
Temperature Compensation	automatic between 10 and 40°C (50 to 104°F)
Measurement Time	approximately 1.5 seconds
Minimum Sample Volume	100 μL (to cover prism totally)
Light Source	yellow LED
Sample Cell	stainless steel ring and flint glass prism
Auto-off	after three minutes of inactivity
Enclosure Rating	IP65
Battery Type / Life	9V / approximately 5000 readings
Dimensions / Weight	192 x 102 x 67 mm (7.6 x 4.01 x 2.6”) / 420 g (14.8 oz.)
Ordering Information	HI96801 is supplied with battery and instruction manual
Warranty	2 years
