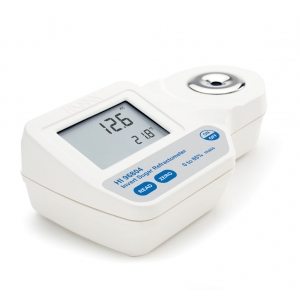

HI96804 digital refractometer for invert sugar analysis

The HI96804 is a rugged, portable digital refractometer for food products designed to report the content of aqueous solutions containing sugar as % invert sugar by weight. The HI96804 report the results with an accuracy of ±0.2%. The operation of the meter is simplified with only two buttons: one button is to calibrate with distilled or deionized water and the other to take a measurement. All readings are automatically compensated for temperature variations according to the ICUMSA Methods Book standard and displayed within a 1.5 second response time.

Brand: Hanna

Learn more

Product CodeProduct Product Description Price (Excl gst) Qty Add
HA-HI96804 HI96804 digital refractometer for invert sugar analysis HI96804 digital refractometer for invert sugar analysis Login for price

Go to checkout

The HI96804 Digital Invert Sugar Refractometer converts the refractive index of a food sample to % invert sugar by weight. This conversion is based on the tables found in the ICUMSA Methods Book (International Commission for Uniform Methods of Sugar Analysis) that documents the changes in refractive index with temperature for a percent by weight invert sugar solution. The HI96804 is ideal for the analysis of invert sugar produced from honey, jam, or manufactured from the splitting of sucrose compound. The HI96804 is an easy to use tool for measuring sugar in food samples in the field or in the lab.

Features

  • One-point calibration
    • Calibrate with distilled or deionized water
  • Small sample size
    • Sample size can be as small as 2 metric drops (100 μl)
  • Automatic Temperature Compensation (ATC)
    • Samples automatically compensated for temperature variations
  • Quick, accurate results
    • Readings are displayed in approximately 1.5 seconds
  • Dual-level LCD
    • The dual-level LCD displays measurement and temperature readings simultaneously
  • Stainless steel sample well
    • Easy to clean and corrosion-resistant
  • Battery indicators
    • Battery percent level remaining at startup and low battery indicator
  • Automatic shut-off
    • To conserve battery life the meter shuts off automatically after three minutes of non-use
  • IP65 water resistant protection
    • Water resistant ABS plastic casing designed to perform under laboratory and field conditions.
Sugar Content Range 0 to 85% mass (% w/w invert sugar)
Sugar Content Resolution 0.1% mass
Sugar Content Accuracy (@25ºC/77ºF) ±0.2% mass
Temperature Range 0 to 80°C (32 to 176°F)
Temperature Resolution 0.1°C (0.1°F)
Temperature Accuracy ±0.3 °C (±0.5 °F)
Temperature Compensation automatic between 10 and 40°C (50 to 104°F)
Measurement Time approximately 1.5 seconds
Minimum Sample Volume 100 μL (to cover prism totally)
Light Source yellow LED
Sample Cell stainless steel ring and flint glass prism
Auto-off after three minutes of inactivity
Enclosure Rating IP65
Battery Type / Life 9V / approximately 5000 readings
Dimensions / Weight 192 x 102 x 67 mm (7.6 x 4.01 x 2.6”) / 420 g (14.8 oz.)
Ordering Information HI96804 is supplied with battery and instruction manual
Warranty 2 years
