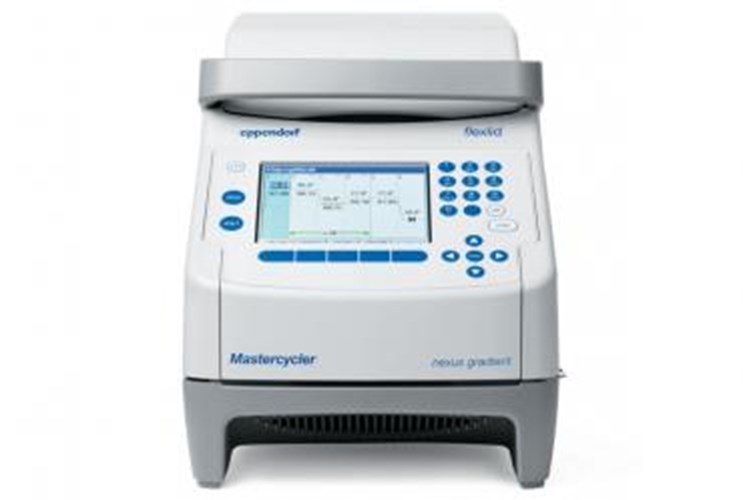

Eppendorf Mastercycler® Nexus

The Mastercycler nexus can accommodate 96-well PCR plates, 0.2 mL PCR tubes, 0.2 mL PCR tube strips and 0.5 mL PCR tubes. This flexibility allows PCR users to select the consumables that best fit their assay. With less than 40 dB[a] noise emission, the nexus is whisper quiet, while also being energy efficient.

Brand: Eppendorf

Learn more

Select your options below

Product CodeProduct	Product Description	Price (Excl gst)
EP6331000068 Eppendorf Mastercycler® Nexus Gradient	Eppendorf Mastercycler® Nexus Gradient	Login for price
EP6333000065 Eppendorf Mastercycler® Nexus	Eppendorf Mastercycler® Nexus	Login for price
EP6332000061 Eppendorf Mastercycler® Nexus Eco	Eppendorf Mastercycler® Nexus Eco	Login for price
EP6335000062 Eppendorf Mastercycler® Nexus Flat	Eppendorf Mastercycler® Nexus Flat	Login for price
EP6330000064 Eppendorf Mastercycler® Nexus Flat Eco	Eppendorf Mastercycler® Nexus Flat Eco	Login for price
EP6334000069 Eppendorf Mastercycler® Nexus Gradient Eco	Eppendorf Mastercycler® Nexus Gradient Eco	Login for price
EP6345000060 Eppendorf Mastercycler® Nexus GSX1	Eppendorf Mastercycler® Nexus GSX1	Login for price
EP6347000068 Eppendorf Mastercycler® Nexus GSX1e	Eppendorf Mastercycler® Nexus GSX1e	Login for price
EP6346000064 Eppendorf Mastercycler® Nexus SX1	Eppendorf Mastercycler® Nexus SX1	Login for price
EP6348000061 Eppendorf Mastercycler® Nexus SX1e	Eppendorf Mastercycler® Nexus SX1e	Login for price

Go to checkout

In the age of networking, the new Mastercycler nexus is your reliable companion when it comes to the daily routine of PCR. It is easy to use, does not need much space or energy and sends you an e-mail when it is done – what else do you need from a PCR cycler?

Flexlid Concept

Due to the flexlid concept, the cycler can deal with all types of PCR consumables, from low volume all the way up to 0.5 mL PCR tubes. Of course, all common PCR plates fit – and if your throughput becomes even higher, you can just connect one or two Mastercycler nexus eco to your Mastercycler nexus

Gradient with SteadySlope® technology

The gradient option of the Mastercycler pro features the SteadySlope® technology to ensure that the heating and cooling ramp rates are identical in both gradient and normal operation. Thus, you can expect identical temperature control characteristics in both optimization and routine experiments. Programming the gradient with the Control Panel and the CycleManager pro is easy and intuitive – so that novice users can get started quickly and safely.

Certified Quality

All Eppendorf cyclers follow these quality guidelines:

Individual, documented quality control certificates
Calibration accordingly to national and international standards: NIST (USA), DKD/PTB (Germany), UKAS/NPL (UK)
UL/cUL listed

The Mastercycler nexus is a whisper quiet PCR machine. Low noise levels make working in your lab more pleasant and enjoyable, particularly when you are thinking about your next big breakthrough findings…

Features

Intuitive graphic programming
Small footprint
Universal block for ultimate flexibility
Connect up to 2 Mastercycler nexus eco to your existing unit
Available with gradient
E-mail notification
flexlid concept allows use of all types of consumables with automatic height adjustment of the lid

	MC nexus flat eco	MC nexus gradient	MC nexus eco	MC nexus	MC nexus gradient eco
Intuitive graphic programming	–	￭	–	￭	–
E-mail Notification	￭	￭	￭	￭	￭
Sample capacity	4 slides or other matching consumables	96 × 0.2 mL PCR tubes, 1 PCR plate 8 × 12 or up to 71 × 0.5 mL PCR tubes	96 × 0.2 mL PCR tubes, 1 PCR plate 8 × 12 or up to 71 × 0.5 mL PCR tubes	96 × 0.2 mL PCR tubes, 1 PCR plate 8 × 12 or up to 71 × 0.5 mL PCR tubes	96 × 0.2 mL PCR tubes, 1 PCR plate 8 × 12 or up to 71 × 0.5 mL PCR tubes
Flexlid™ concept	￭	￭	￭	￭	￭
Temperature control range of the block	4 – 99 °C	4 – 99 °C	4 – 99 °C	4 – 99 °C	4 – 99 °C
2 years warranty	￭	￭	￭	￭	￭
Temperature control mode	Fast, Standard, Safe	Fast, Standard, Safe	Fast, Standard, Safe	Fast, Standard, Safe	Fast, Standard, Safe
Heating technology of the block	Peltier elements, Triple Circuit Technology	Peltier elements, Triple Circuit Technology	Peltier elements, Triple Circuit Technology	Peltier elements, Triple Circuit Technology	Peltier elements, Triple Circuit Technology
Silver block	–	–	–	–	–
Gradient range	–	1 – 20 °C	–	–	1 – 20 °C
Gradient block	￭	￭	–	–	￭
Gradient temperature range	–	30 – 99 °C	–	–	30 – 99 °C
Lid temperature range	37 – 110 °C	37 – 110 °C	37 – 110 °C	37 – 110 °C	37 – 110 °C
Unit can control 2 other units in network	–	￭	–	￭	–
Unit can only be controlled¹	￭	–	￭	–	￭
Lid descent and closing pressure	flexlid^®technology, with TSP	flexlid^®technology, with TSP	flexlid^®technology, with TSP	flexlid^®technology, with TSP	flexlid^®technology, with TSP
USB port	–	￭	–	￭	–
Block homogeneity 20–72 °C	≤ ±0.3 °C	≤ ±0.3 °C	≤ ±0.3 °C	≤ ±0.3 °C	≤ ±0.3 °C
Block temperature accuracy	±0.2 °C	±0.2 °C	±0.2 °C	±0.2 °C	±0.2 °C
Block homogeneity 90 °C	≤ ±0.4 °C	≤ ±0.4 °C	≤ ±0.4 °C	≤ ±0.4 °C	≤ ±0.4 °C
Heating rate	3 °C/s ²	3 °C/s ²	3 °C/s ²	3 °C/s ²	3 °C/s ²
Cooling rate	2 °C/s ²	2 °C/s ²	2 °C/s ²	2 °C/s ²	2 °C/s ²
Gradient block	-	Over 12 rows	–	–	Over 12 rows (0.2 mL)
Interfaces	CAN_in/CAN_out, Ethernet	CAN_in/CAN_out, Ethernet, USB	CAN_in/CAN_out, Ethernet	CAN_in/CAN_out, Ethernet, USB	CAN_in/CAN_out, Ethernet
Total weight	10.4 kg	10.9 kg	10.9 kg	10.9 kg	10.4 kg
Power supply	230 V, 50 – 60 Hz	230 V, 50 – 60 Hz	230 V, 50 – 60 Hz	230 V, 50 – 60 Hz	230 V, 50 – 60 Hz
Max. power consumption	700 W	700 W	700 W	700 W	700 W
Dimensions (W × D × H)	25 × 41.2 × 32.1 cm	25 × 41.2 × 32.1 cm	25 × 41.2 × 32.1 cm	25 × 41.2 × 32.1 cm	25 × 41.2 × 32.1 cm
Thermoblock	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Number of programs on device	> 700	> 700	> 700	> 700	> 700

	MC nexus flat	MC nexus GSX1	MC nexus SX1	MC nexus GSX1e	MC nexus SX1e
Intuitive graphic programming	￭	￭	￭	–	–
E-mail Notification	￭	￭	￭	￭	￭
Sample capacity	4 slides or other matching consumables	96 × 0.2 mL PCR vessels, 1 PCR plate 8 × 12	96 × 0.2 mL PCR vessels, 1 PCR plate 8 × 12	96 × 0.2 mL PCR vessels, 1 PCR plate 8 × 12	96 × 0.2 mL PCR vessels, 1 PCR plate 8 × 12
Flexlid™ concept	￭	￭	￭	￭	￭
Temperature control range of the block	4 – 99 °C	4 – 99 °C	4 – 99 °C	4 – 99 °C	4 – 99 °C
2 years warranty	￭	￭	￭	￭	￭
Temperature control mode	Fast, Standard, Safe	Fast, Standard, Safe	Fast, Standard, Safe	Fast, Standard, Safe	Fast, Standard, Safe
Heating technology of the block	Peltier elements, Triple Circuit Technology	Peltier elements, Triple Circuit Technology	Peltier elements, Triple Circuit Technology	Peltier elements, Triple Circuit Technology	Peltier elements, Triple Circuit Technology
Silver block	–	￭	￭	￭	￭
Gradient range	–	1 – 20 °C	–	1 – 20 °C	–
Gradient block	￭	￭	–	￭	–
Gradient temperature range	–	30 – 99 °C	–	30 – 99 °C	–
Lid temperature range	37 – 110 °C	37 – 110 °C	37 – 110 °C	37 – 110 °C	37 – 110 °C
Unit can control 2 other units in network	￭	￭	￭	–	–
Unit can only be controlled¹	–	–	–	￭	￭
Lid descent and closing pressure	flexlid^®technology, with TSP	flexlid^®technology, with TSP	flexlid^®technology, with TSP	flexlid^®technology, with TSP	flexlid^®technology, with TSP
USB port	￭	￭	￭	–	–
Block homogeneity 20–72 °C	≤ ±0.3 °C	≤ ±0.3 °C	≤ ±0.3 °C	≤ ±0.3 °C	≤ ±0.3 °C
Block temperature accuracy	±0.2 °C	±0.2 °C	±0.2 °C	±0.2 °C	±0.2 °C
Block homogeneity 90 °C	≤ ±0.4 °C	≤ ±0.4 °C	≤ ±0.4 °C	≤ ±0.4 °C	≤ ±0.4 °C
Heating rate	3 °C/s ²	5 °C/s ²	5 °C/s ²	5 °C/s ²	5 °C/s ²
Cooling rate	2 °C/s ²	3.5 °C/s ²	3.5 °C/s ²	3.5 °C/s ²	3.5 °C/s ²
Gradient block	–	Over 12 rows (0.2 mL)	–	Over 12 rows (0.2 mL)	–
Interfaces	CAN_in/CAN_out, Ethernet, USB	CAN_in/CAN_out, Ethernet, USB	CAN_in/CAN_out, Ethernet, USB	CAN_in/CAN_out, Ethernet	CAN_in/CAN_out, Ethernet
Total weight	10.4 kg	10.9 kg	10.9 kg	10.4 kg	10.4 kg
Power supply	230 V, 50 – 60 Hz	230 V, 50 – 60 Hz	230 V, 50 – 60 Hz	230 V, 50 – 60 Hz	230 V, 50 – 60 Hz
Max. power consumption	700 W	540 W	540 W	540 W	540 W
Dimensions (W × D × H)	25 × 41.2 × 32.1 cm	25 × 41.2 × 32.1 cm	25 × 41.2 × 32.1 cm	25 × 41.2 × 32.1 cm	25 × 41.2 × 32.1 cm
Thermoblock	Aluminum	Silver	Silver	Silver	Silver
Number of programs on device	> 700	> 700	> 700	> 700	> 700

¹Control through a Mastercycler^® nexus, Mastercycler^® nexus gradient, Mastercycler^® nexus X1g, Mastercycler^® nexus X1 or Mastercycler^® nexus flat
²measured at the block
