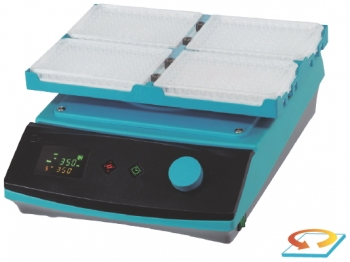

Performance
- Optimally designed to shake four microplates simultaneously.
- Ideal for applications that demand precise and repeatable mixing.
- Microprocessor PID control.
- Wide speed range from150 to1,200 rpm
- Orbital shaking motion in 3mm diameter.
- Smooth start feature to avoid sample contamination.
- Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion.
Convenience
- Vivid and colorful vacuum fluorescent display (VFD) with touch–sensitive keypad.
- One-touch timer for time-dependent shaking operation. (1 min. to 99 hr. 59 min.)
- Compact and lightweight design allow for use in cold rooms or incubators.
- Variety of accessories are available to meet application demands.
- Optional tube racks also available for 1.5ml micro-tubes, 15ml conical tubes, and 50ml conical tubes.
Safety
- Self-diagnostic function identifying errors.
- Its polypropylene main body is highly chemical-resistant and easy-to-clean.
- Over-current protection.
Available Accessories & Options
- 1.5ml Micro-tube rack with cap
- 15ml Conical tube rack
- 50ml Conical tube rack
| Model |
CPS-350 |
| Control system |
PID feedback control |
| Display |
VFD |
| Shaking system |
Motion type |
Orbital |
| Speed range(rpm) |
150 to 1,200 |
| Accuracy at 500 rpm |
±15 |
| Timer |
1min. to 99hr. 59min. |
| Orbit size(mm / inch, dia) |
3 / 0.12 |
| Max. load(kg / Ibs) |
4 / 8.8 |
| Dimension |
Tray(W×D) (mm /inch) |
269×185 / 10.6×7.3 |
| Body 1) (W×D×H) (mm /inch) |
269×325x128 / 10.6×12.8×5.0 |
| Net weight(kg / lbs) |
7.7 / 17 |
| Electrical requirements |
AC 100 ~ 240 V, 50/60 Hz |
| Cat. No. |
|
AAH3C1115K |
※ Permissible environmental conditions: temperature (5-40°C) and relative humidity (up to 80%).
1) Main body dimension without accessories.
