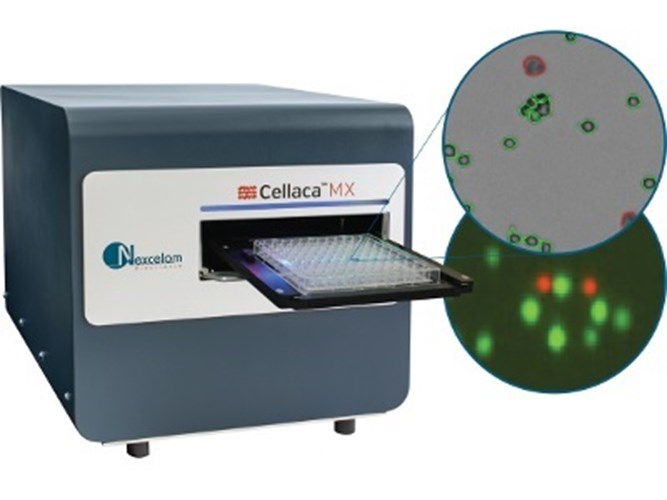

Cellaca MX High-throughput Cell Counter

The Cellaca MX High-throughput Cell Counter is a cell counting instrument manufactured by Nexcelom. It is an automated instrument that uses brightfield microscopy and image analysis to count cells in a sample. The Cellaca MX is capable of handling multiple samples at once and can count a wide range of cell sizes and types, including cancer cells, stem cells, and primary cells.

Brand: Nexcelom

Learn more

Select your options below

Go to checkout

The High-Throughput Automated Cell Counter that Changes Everything

Your workflow will be streamlined and more efficient when you integrate the Cellaca MX with these capabilities:

Batch samples – run up to 24 samples at a time
Small sample volume – only 25 µl of cell sample required
Autofocus – fast autofocus prior to analysis
Cell based assays – data output at a single cell level enables you to do cell-based assays such as apoptosis, mitochondrial membrane potential, protein expression (including GFP and RFP), and reactive oxygen species (ROS)
Time course reporting – effortlessly create growth curves with multiple samples at several time points using the customization tools
Automatic calculation – calculate various data points such as doubling time for individually labeled samples with an easy-to-use interface
Multiple configurations – choose to add up to five fluorescent filters
Automation ready – robotic integration ability with optional API
Customizable reports – add graphs, images, charts, and tables
Multi-language support – over 7,000 languages available
21 CFR Part 11 ready – optional add-on that includes audit trail, user access control, and digital signature

Cellaca MX BF	Cellaca MX FL2	Cellaca MX FL5
Channels	Brightfield	Brightfield, Green, Red	Brightfield, Blue, Green, Red, Far Red
Number of Channels	1	4	14
Excitation LED	N/A	470, 527	365, 470, 527 and 620 nm
Emissions Filters	N/A	534, 655	452, 534, 605, 655 and 692 nm
Commonly Used Compatible Dyes	Trypan Blue	Trypan Blue, AO/PI	Trypan Blue, AO/PI, Hoechst, DAPI, GFP, RFP, CMFDA, Calcein AM, 7AAD, Annexin V
Counting Speed Per 24 Samples	48 seconds	Trypan Blue – 48 seconds Fluorescence – Less than 3 minutes	Trypan Blue – 48 seconds Fluorescence – Less than 3 minutes
Volume (per well)	25 µL – 100 µL sample volume 50 µL – 200 µL total well volume	25 µL – 100 µL sample volume 50 µL – 200 µL total well volume	25 µL – 100 µL sample volume 50 µL – 200 µL total well volume
Size/Diameter Range	5 – 80 µm	5 – 80 µm	5 – 80 µm
Concentration Range	1×10⁵ – 1×10⁷	1×10⁵ – 1×10⁷	1×10⁵ – 1×10⁷
Fluorescence Upgradeable	Yes	Yes (add additional colors)	N/A
IQ/OQ Option	Yes	Yes	Yes
21 CFR Part 11 Ready Option	Yes	Yes	Yes
Automation Compatible	Yes	Yes	Yes
Operating System	Windows 10	Windows 10	Windows 10
Dimensions	13 in x 13 in x 16 in (33 cm x 33 cm x 41 cm)	13 in x 13 in x 16 in (33 cm x 33 cm x 41 cm)	13 in x 13 in x 16 in (33 cm x 33 cm x 41 cm)
Weight	40 lbs (18 kg)	42 lbs (19 kg)	42 lbs (19 kg)
