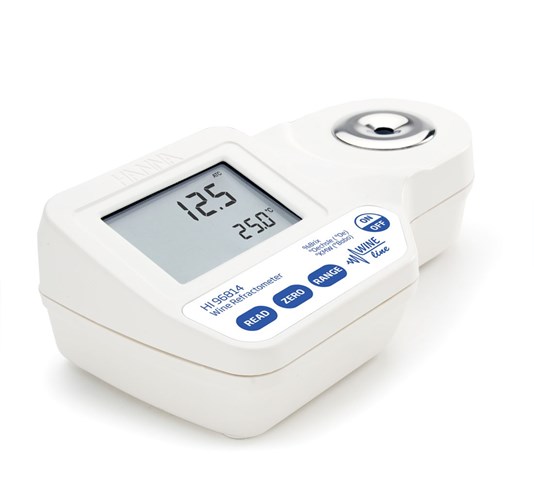

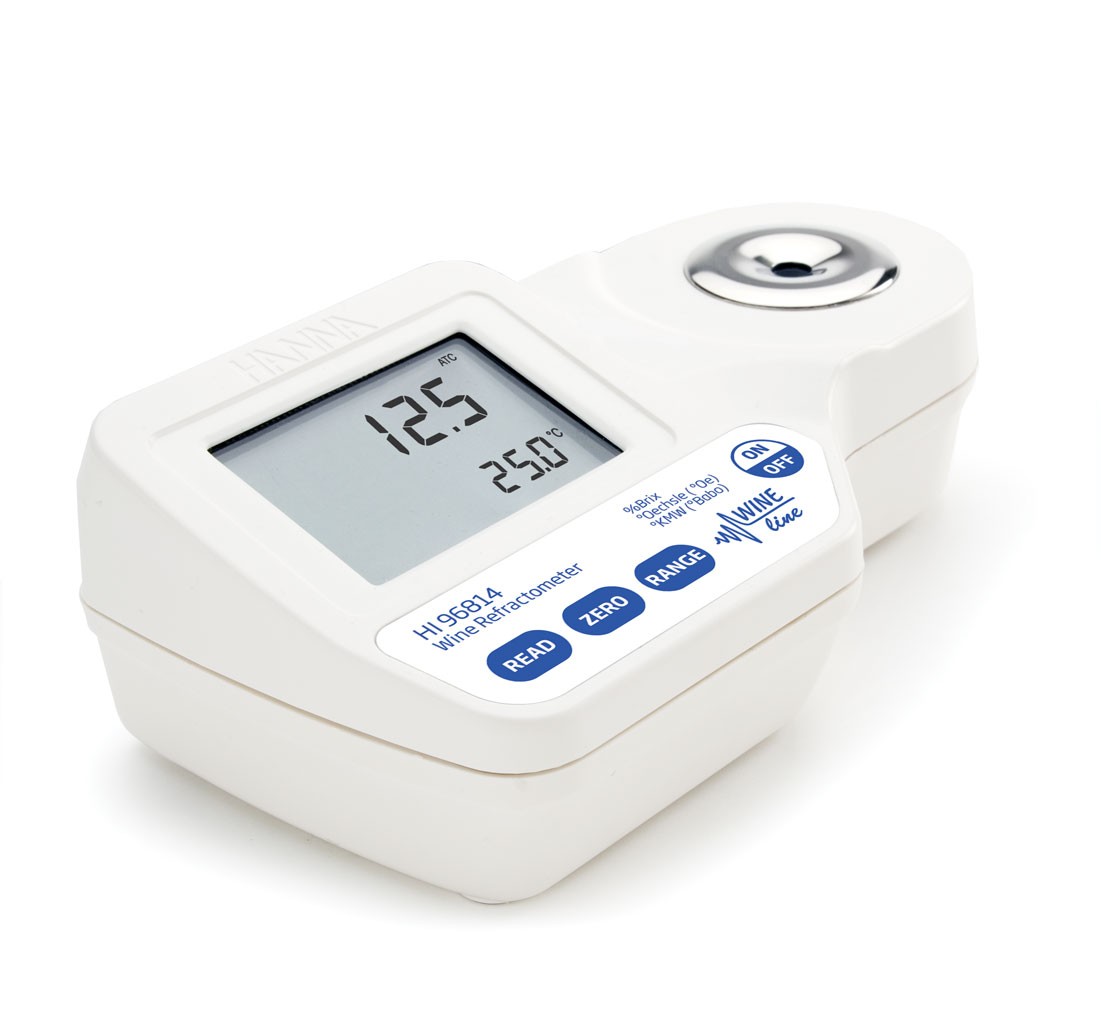

HI96814 Digital Refractometer for % Brix, °Oe and °KMW Sugar Analysis in Wine, Juice and Must

The HI96814 is a rugged, portable digital refractometer designed for sugar (% Brix, °Oe and °KMW) measurement of wine, juice and must. The HI96814 has a high accuracy of ±0.2% Brix, ± 1 °Oe and ±0.2 °KMW. All readings are automatically compensated for temperature variations according to the ICUMSA Methods Book standard and displayed with a 1.5 second response time. The sealed flint glass prism and stainless steel well are easy to clean. Just wipe with a soft cloth in preparation for the next sample.

Brand: Hanna

Learn more

Product CodeProduct Product Description Price (Excl gst) Qty Add
HA-HI96814 HI96814 Digital Refractometer for % Brix, °Oe and °KMW Sugar Analysis in Wine, Juice and Must HI96814 Digital Refractometer for % Brix, °Oe and °KMW Sugar Analysis in Wine, Juice and Must Login for price

Go to checkout

The HI96814 Digital Wine Refractometer converts the refractive index of wine juice or must to sucrose concentration in units of percent by weight, % Brix (also referred to as °Brix). The conversion used is based on the ICUMSA Methods Book (International Commission for Uniform Methods of Sugar Analysis). Since the majority of sugar in grape juice is fructose and glucose and not sucrose, the reading is sometimes referred to as “Apparent Brix”.


  • One-point calibration
    • Calibrate with distilled or deionized water
  • Small sample size
    • Sample size can be as small as 2 metric drops (100 μl)
  • Automatic Temperature Compensation (ATC)
    • Samples automatically compensated for temperature variations
  • Quick, accurate results
    • Readings are displayed in approximately 1.5 seconds
  • Dual-level LCD
    • The dual-level LCD displays measurement and temperature readings simultaneously
  • Stainless steel sample well
    • Easy to clean and corrosion-resistant
  • Battery indicators
    • Battery percent level remaining at startup and low battery indicator
  • Automatic shut-off
    • To conserve battery life the meter shuts off automatically after three minutes of non-use
  • IP65 water resistant protection
    • Water resistant ABS plastic casing designed to perform under laboratory and field conditions.
Sugar Content Range 0 to 50% Brix; 0-230° Oechsle; 0-42° KMW
Sugar Content Resolution 0.1% Brix; 1° Oechsle, 0.1° KMW
Sugar Content Accuracy (@25ºC/77ºF) ±0.1% Brix, 1° Oechsle, ±0.2° KMW
Temperature Range 0 to 80°C (32 to 176°F)
Temperature Resolution 0.1°C (0.1°F)
Temperature Accuracy ±0.3 °C (±0.5 °F)
Temperature Compensation automatic between 10 and 40°C (50 to 104°F)
Measurement Time approximately 1.5 seconds
Minimum Sample Volume 100 μL (to cover prism totally)
Light Source yellow LED
Sample Cell stainless steel ring and flint glass prism
Auto-off after three minutes of inactivity
Enclosure Rating IP65
Battery Type / Life 9V / approximately 5000 readings
Dimensions / Weight 192 x 102 x 67 mm (7.6 x 4.01 x 2.6”) / 420 g (14.8 oz.)
Ordering Information HI96813 is supplied with battery and instruction manual
Warranty 2 years
