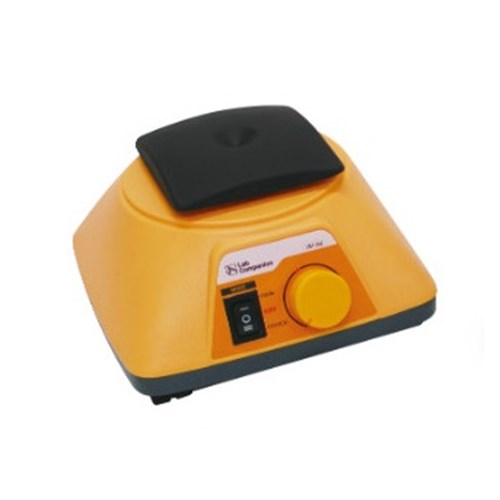

VM-96T Vortex Mixer

JT-AAH361215BK

Low profile design and highly touch sensitive sensor reduce wrist stresses when pushing and holding experiment tools resulting in less fatigue and less unpleasant feeling.

Brand: JeioTech

Learn more

Select your options below
Enquire about this product
Product CodeProduct Product Description Price (Excl gst) Qty Add
JT-AAH361215BK Lab Companion Vortex Mixer VM-96T with Standard Mixing Platform (blue) Lab Companion Vortex Mixer VM-96T with Standard Mixing Platform (blue) Login for price

Go to checkout

X

Stock Request

Submit your details.
You are enquiring about VM-96T Vortex Mixer

Pricing Request Starts Here

Submit your details to receive a quote.
You are enquiring about VM-96T Vortex Mixer

Features

  • Well-balanced design and optimized safety features.
  • Low-profile with small footprint ideal for use on lab benches and within fume hoods or clean benches.
  • On touch operation mode, real-time and dynamic mixing made even with gentle touch.
    • Every point of the top surface is highly reactive to gentle touch due to widely built in sensitive sensors.
  • Selective mixing modes with variable speed control knob.
    • Touch / Continuous.
  • Sparkless BLDC motor adopted for safety, quick acceleration, and low maintenance.
  • Built-in safety features against overload and over current.
  • Chemically resistant polypropylene molded exterior.
  • Wide range of accessories available.

Model

VM-96T

Speed range (rpm)

Max. 3000

Speed control

Scale

Operating mode

Touch / Continuous

Motion

Orbital

Orbit size (mm, inch, dia.)

4 / 0.16

Max. load (kg / lbs)

0.5 / 1.1

Motor rating input / output (W)

12 / 6

Material

Platform

Silicone

Body

Polypropylene

Motor type

BLDC (Brushless Direct Current)

Dimensions

Platform (WxD) (mm / inch)

76x76 / 3x3

Exterior 1) (W×D×H) (mm / inch)

148x159x77 / 5.8x6.3x3

Net weight (kg / lbs)

2.6 / 5.7

Protection class (DIN EN 60529)

-

Electrical requirements

AC 100V to 240V, 50/60Hz
