Microscopes

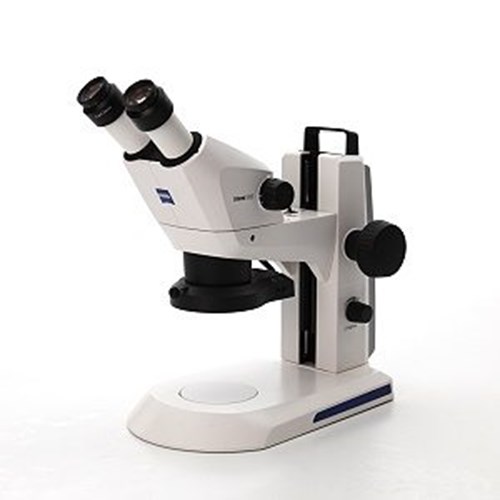

Stemi 305 MAT Microscope Set

Microscope Body Stemi 305 ESD

• Greenough system
• ESD protection feature: Antistatic surface
• Manually operable zoom 5:1 (0.8x...4.0x) on both sides
• Fixed zoom clickstops 0.8x-1x-2x-3x-4x
• Free working distance 110 mm
• Viewing angle 45° with adjustable interocular distance 55...75 mm
• Eyepiece mount 30 mm with maximum field number 23 mm
• Mount D=76 mm for Stemi mount/Mount S
• Interface D=66 mm for illuminators
• Thread M52 for front optics or analyzer
• Integrated near-vertical LED illumination (IVI) for stands K EDU/LAB/MAT, stand M LED, controller K LED
• Eyepieces 10x/23 Br. foc.
• Spiral cable RJ12 Stand K MAT
• Stand base D310xW200xH35 mm
• Working surface D195xW160 mm
• Interface d=84 mm for stages
• Column 250 mm with drive and handle, lifting range 145 mm
• Stemi mount d=76 mm, load capacity 5 Kg, adjustable friction
• 2x sockets for IVI and illuminator K LED
• RL control for on/off/dimming
• ESD protection feature: Antistatic surface, grounding socket
• Integrated power unit 12V DC 24W/100...240V AC/50...60Hz
• B/W plastic plate D=84x5 mm
• Country-specific power cable EURO C8
• Dust cover Ring Illuminator K LED segmentable
• 48 LEDs in 2 rows, tilted
• FWD 50...300 mm, mount d=66 mm
• Separate controls for segmentation and rotation
• 4 modes: Full, half, quarter circle, 2 facing quarter circles
• Manual turning in 90° steps or continuous rotation
• For stands K EDU/LAB/MAT, stand M LED or controller K LED
