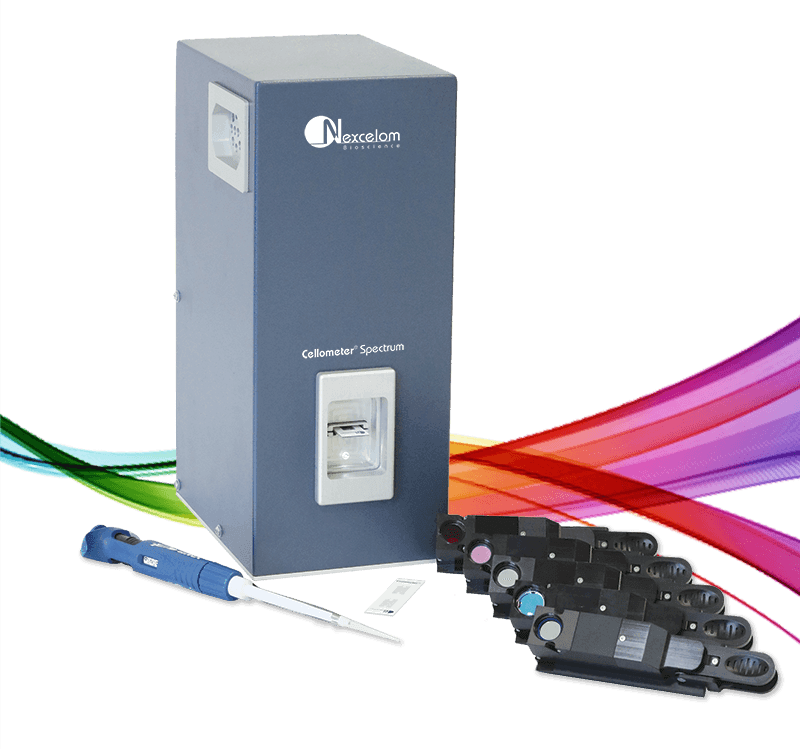

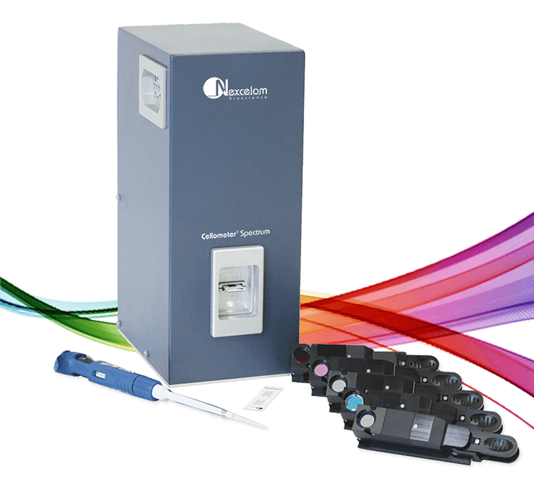

Cellometer Spectrum

The Spectrum Image Cytometer is a customizable cell counting and cytometry instrument that provides flow-like data with predesigned templates. Quickly plot cell population data as a histogram, scatter plot, dot plot or contour plot using FCS express. The filter sets are user-changable, allowing you to customize the instrument for specific assays/reagents of interest.

Brand: Nexcelom

Learn more

Select your options below
Request pricing

Go to checkout

X

Stock Request

Submit your details.
You are enquiring about Cellometer Spectrum

Pricing Request Starts Here

Submit your details to receive a quote.
You are enquiring about Cellometer Spectrum

All-in-One System

Basic cell counting, primary cell viability, and cell-based assays.

Dual-Fluorescence for Accurate Primary Cell Viability

No interference from red blood cells. Analyze bone marrow, peripheral blood, and cord blood without lysing.

User Changeable Fluorescence Filters

Choose from six color options to run two-color assays

Unique Algorithms for Advanced Cell Analysis

Determine concentration and viability of hepatocytes, adipocytes, and other sophisticated cell types.

Fast Results

Obtain cell images, counts, size measurements and viability calculations in < 30 seconds per sample.

Simple Cell-Based Assays

  • Small 20 µl sample size
  • Cell count, concentration and viability
  • Two-color antibody assays
  • GFP/RFP Transfection
  • Cell health and cell-based assays, including:
    • Apoptosis
    • Cell Proliferation
    • Cell Cycle
    • Mitochondrial Potential
    • Phagocytosis
    • Surface Marker Analysis
Includes
  • Cellometer Spectrum Instrument
  • Cellometer Software
  • FCS Express 6 analysis software (2 licenses)
  • Two Fluorescent Optics Modules
  • Power Supply
  • USB 2.0 Connection Cable
  • Phone/online applications support during set-up
Magnification Selection
  • 5x (ex: most mammalian cells)
  • 10x (ex: yeast, platelets, algae)
Imaging Performance 5x magnification
Cell Size: 5 – 300* microns, Conc. Range: 105 – 107 cells/ml10x magnification
Cell Size: 0.5 – 25 microns,  Conc. Range: 105 – 107 cells/mlBright field imaging, fluorescent imaging and pattern-recognition software to quickly and accurately decluster, identify and count individual cells.* Cellometer CHT4-PD300 Slides are required for cells > 80 microns in diameter
Instrument Specifications Weight: 24.0 lbs. (10.9 kg)
Dimensions: Width: 6.0” (15.2 cm), Depth: 8.5” (21.6 cm), Height: 14.0” (35.6 cm)
Input to Power Adapter: 100-240 VAC, 50/60 Hz, 1.0A
Output to Instrument: 12 VDC, 3.34A
PC / Laptop
Minimum
Requirements(If purchasing Cellometer  without PC laptop)
  • Windows 10
  • 2 GHz or higher processor
  • 4GB RAM (8GB RAM or higher recommended)
  • USB 2.0 or higher
  • Display resolution: 1024 x 768 pixels or higher

Intel Mac with Parallels/Running Windows 10
