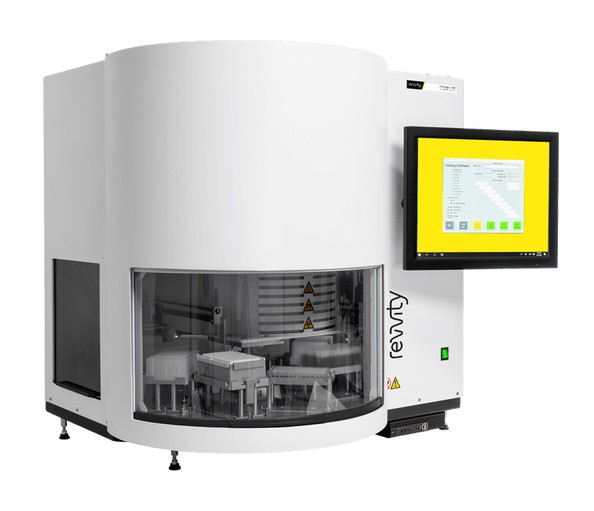

Experience the revolutionary compact benchtop design of our newly developed chemagic 360 Nucleic Acid Extractor. Based on the well-established chemagen Technology, the system offers a flexible solution for different sample processing and throughput needs. Configurable with three kinds of chemagic Rod Heads (see table below) the system can process sample volumes from 10 μl – 10 ml.
Key features:
- Sample volumes from 10 μl – 10 ml
- High throughput
- Huge kit portfolio – whole blood, saliva, serum/plasma etc.
- No cross contamination
- Revolutionary compact benchtop design
To support your automation needs, the system is equipped with the chemagic Software and the chemagic Dispenser 360. These allow LIMS-compatible bar code reading/sample tracking and automated buffer filing for all volume applications.
chemagic Software:
The intuitive chemagic Software is the ideal solution for laboratories that require high quality assurance while they use the chemagic 360 instrument for nucleic acid isolation. For ease of operation and advanced QA needs the chemagic Software generates log files, which can be easily integrated in LIMS systems.
Features at a glance:
- Bar code reading/sample tracking
- LIMS compatible log files
- Easy navigation and set up
- Pre-installed protocols
- Tracking the progress of a running protocol
chemagic Dispenser 360 unit:
The use of the chemagic 360 instrument simplifies and improves time consuming sample preparation steps in nucleic acid isolation significantly, by using the chemagic Dispenser 360 unit. The chemagic Dispenser 360 notably reduces hands-on time when preparing a chemagic 360 run. Independent of the amount of needed buffer, the additional unit prefills tubes/plates quickly and accurately. Variants of the chemagic Dispenser 360 unit are available to suit the corresponding chemagic Rod Head formats (12 and 24/96).
Features at a glance:
- Reduces hands-on time
- Cost-efficient through optimal buffer dispensing
- Fast and reliable membrane pump technology
- Fully integrated in the chemagic 360 software
Specifications
Depth |
80.0 cm |
Height |
90.0 cm |
Length |
80.0 cm |
Weight |
140.0 kg |
Width |
80.0 cm |
Extraction Heads (chemagic Rod Heads) |
No. of Samples |
Samples Volumes |
Tubes/Plates |
Processing Time |
12 |
1 – 12 |
0.5 mL – 10 mL |
50 mL tubes |
e.g. for 10 mL blood ~ 55 min |
24 |
1 – 24 |
200 μL – 4 mL |
24 well plates XL |
e.g. for 4 mL blood ~ 55 min |
96 |
1 – 96 |
10 μL – 400 μL |
96 well plates |
e.g. for 400 μL blood ~ 55 min |
