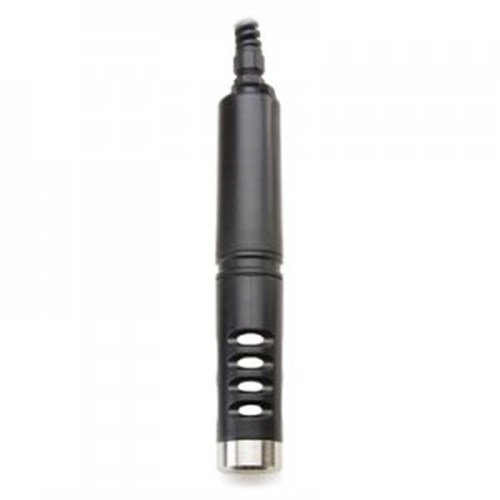

The HI7609829 is a multiparameter pH/ISE/EC/DO/Turbidity/Temperature probe for use with the HI9829 portable meter. Sensors are automatically recognized by the probe and meter when connected. Sensor replacement is quick and easy with field replaceable, screw type connectors that are color-coded for easy sensor identification. The probe features a multistrand-multiconductor shielded cable with 4m length. It’s rugged, waterproof design makes it ideal for field use. The probe is suitable for installation in confined locations such as air vaults, river intakes, vertical wells, tanks, etc.. The streamline diameter of the probe permits insertion into 2" pipelines. Unlike probes that require a cable support for active deployment, this probe can be manually lowered and raised by the cable due to its superior strength rating. It is suitable for installation in open moving waters; rivers, streams, ditches (farmland drainage), conveyance canals, and more. In these cases protecting the probe from debris is important. The HI7609829 may be deployed in open waters; monitoring lakes, ponds, wetland basin, infiltration basins, and bays and is suitable for measurements in a flow cell.
Features
Waterproof Protection - The HI7629829 probe features an IP68 rating for continuous immersion in water.
Color Coded, Field Replaceable Sensors - Sensor replacement is quick and easy with field replaceable, screw type connectors that are color-coded for easy sensor port identification.
Auto-sensor Recognition - The probe and meter automatically recognize the sensors that are connected. Any ports not used on the probe will not have the parameter displayed or be configurable.
Automatic Temperature Compensation (ATC) – Integrated temperature sensor allows for automatic temperature compensation of pH, ion selective, conductivity, and dissolved oxygen measurements.
Slim Design - The streamline diameter of the probe permits insertion into 2" pipelines.
