Minititrator Reagents

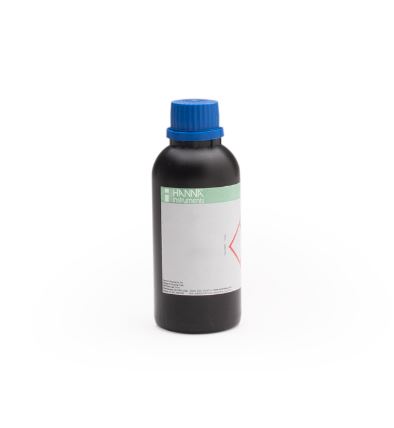

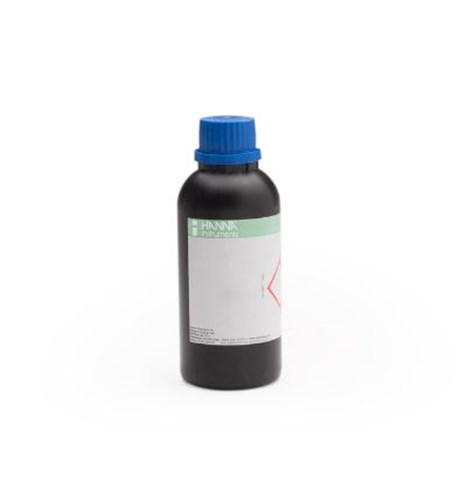

The HI84500-51 is a 230 mL bottle of titrant solution that is used for high range determination of sulfur dioxide in wine. The HI84500 mini titrator is designed to determine free and total sulfur dioxide levels in wine by potentiometric titration. The HI3148B ORP electrode is used to detect the endpoint for both the low (1.0 to 40.0 ppm of SO2) and high (30 to 400 ppm of SO2) ranges. The HI84500 can be used with all wines, including red, which are difficult to test using traditional methods due to the difficulty to observe a distinctive color change when the endpoint is reached.

The HI84500 determines the free and total sulfur dioxide concentration in wine using the Ripper method. Excess iodide is added to the wine sample and reacts with the iodate titrant to produce iodine:

IO₃^- + 5I^- + 6H⁺ → 3I₂ + 3H₂O

The iodine produced reacts with sulfur dioxide in the wine according to the redox reaction below:

H₂SO₃ + I₂ → H₂SO₄ + 2HI
