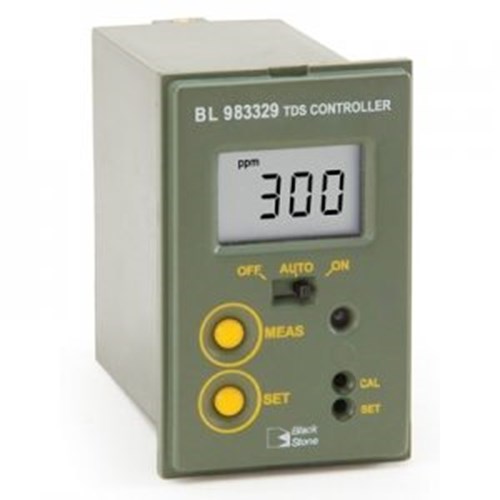

BL983329 TDS Mini Controller

The BL983329 is a compact, panel mounted, process controller for measuring total dissolved solids (TDS) in a process stream that is within the 0 to 999 ppm (mg/L) range. The device features a large LCD with protective cover. Users may choose from automatic or manual dosing modes. When in automatic mode the dry contact relay is activated when a reading is above the set point. The relay can be used to supply power to a dosing pump or a solenoid connected to a valve.

Brand: Hanna

Learn more

Product CodeProduct Product Description Price (Excl gst) Qty Add
HA-BL983329-1 BL983329 TDS Mini Controller BL983329 TDS Mini Controller Login for price

Go to checkout

Adjustable Dry Contact Dosing Relay

The BL983329 features a dosing relay that is activated when the reading is above a user programmable set point.

Programmable Overdose Protection

For enhanced safety the mini controller can be programmed to deactivate the dosing relay if the set point is not reached within a specified time interval. The overdosing timer is programmable from 5 to 30 minutes or disabled.

Relay Control Override

With the flick of a switch the mini controller's relay can be disabled (Off), placed in control (Auto), or be activated for manual operation (On) which is useful for priming a dosing pump.

Multicolor LED Indicator

Multicolor LED indicator allows an operator to quickly check the status of the controller.

Green = Meter in measurement mode and reading is below the set point.
Orange/Yellow = Reading is above the set point and the relay is activated.
Blinking Red = Indicates an alarm condition such as when the maximum dosing time has been exceeded.

Fuse Protected Dosing Contacts

The relay dosing contact is rated for up to a 2A load and is fuse protected.

Labeled Termination Connections

Quick-connect terminal blocks are clearly labeled for easy connection to power, conductivity probe and relay that can be used to operate a dosing pump, valve, audible alarm, or light.

Range 0 to 999 ppm (mg/L)
Resolution 1 mg/L ppm (mg/L)
Accuracy (@25°C/77°F) ±2% full scale
TDS Conversion Factor 0.5
Calibration manual, with CAL trimmer
Dosing Relay maximum 2A (fuse protected), 250 VAC, 30 VDC
Dosing Selection relay activated (contact closed) when the measurement reading is greater than the setpoint
Setpoint adjustable from 0 to 999 ppm (mg/L)
Overtime adjustable, typically from 5 to approximately 30 minutes
Temperature Compensation automatic from 5 to 50°C (41 to 122°F) with beta =2%/ºC
Power Supply models “-0”: 12 VDC adapter (included)
models “-1”: 115/230 VAC; 50/60Hz
Dimensions 83 x 53 x 99 mm (3.3 x 2.1 x 3.9’’)
Weight models “-0”: 200 g (7.1 oz.)
models “-1”: 300 g (10.6 oz.)
Ordering Information BL983329-1 (115/230 VAC) and BL983329-0 (12 VDC) are supplied with mounting brackets, transparent cover and instruction manual.
Warranty 2 years
