Performance & Convenience
- Years of vibration-free and silent operation.
- Equipped with a maintenance-free BLDC motor to generate smooth, quiet, and yet powerful stirring.
- Powerful torque capable of handling high viscosity tasks.
- Maintenance of constant motor speed by PID feedback control system even under conditions of changing viscosity.
- Best effort function intelligently manages its stirring speed to keep stirring even workload is out of its capacity.
- Prevention of accidental spills or splashes thanks to microprocessor controlled smooth start and stop functions.
- Well illuminated digital display panel with sensitive touch buttons.
- Set/present rpm, power ratio (%) and run time are visible together on one screen.
- Stirring directions are selectable depending on each impeller’s shape.
- Built-in USB port for external control and data collection.
- Lab Companion software and USB cable are provided.
- Compact and slim head design for diverse flexibility in configuring other test equipment and accessories. (optional)
Safety
- Sturdy aluminum main body efficiently absorbing and emitting the heat generated by the motor.
- Safety features against overload and overheating for continuous operation.
- Keypad lock function prevents accidental changes.
Available Accessories & Options
- Impellers (stainless steel and PTFE coated)
- Propeller impellers - Standard grade stainless steel with Teflon shaft produces an-axial flow stir between the bot-tom and top levels of a sample with local shearing force. Used at medium or high speeds for mixing normal range level viscosity samples.
- Turbine impellers - A radial flowing stir from the top and bottom levels of a sample with a powerful, high shearing turbulent force. Used ideally for the gassing of liquids and mixing medium to high range level viscosity samples.
- Half-moon impellers / Centrifugal impellers - Tiltable moon-shaped and blade shaft produces a normal axial flow percentage mixing of samples. Used with round bo-ttom shaped containers, medium mixing speed, and samples ranging from low to medium visco-sity levels.
- Anchor impellers / Paddle impellers - An anchored shaft that produces a strong tangential flow with a high shearing percentage force on samples with medium to high viscosity level with speed setting in the low to medium range.
- External controller for MSH - Real time external monitor and control of the current operating condition without opening the door of the enclosure.
- Stands / Support rods
- Clamps and clamp holders
- Flexible coupling
- PTFE stirring seals

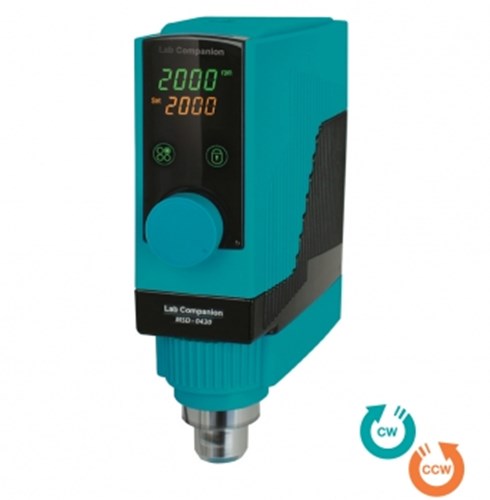

Model |
MSD-0420 |
Speed control |
PID feedback control |
Speed range (rpm) |
80 to 2,000 |
Chuck range (mm / inch, dia) |
3 to 10 / 0.1 to 0.4 |
Stirring capacity, Max. (L, H2O) |
20 |
Viscosity, Max. (cP) 1) |
5,000 (~2,000rpm) / 10,000 (~1,200rpm) / 30,000 (~300rpm) / 50,000 (~200rpm) |
Torque, Max. (N·cm) |
19 |
Motor rating input / output (W) |
70 / 40 |
Material |
Body / Cover / Motor |
Powder coated aluminum / Polypropylene / BLDC |
Dimension |
Overall (W×D×H) (mm / inch) |
75x215x150 / 2.9x8.5x5.9 |
Net weight (Kg / lbs) |
2.8 / 6.2 |
Protection class (DIN EN 60529) |
IP30 |
Electrical requirements (230V 50/60Hz) |
0.5A |
Cat. No. |
AAH373225K |
1) Silicone oil with using 3-bladed propeller impeller(Ø50) under room temperature of 26℃, 60%RH, no load.
※ Permissible environmental conditions: temperature (5-40℃) and relative humidity (up to 80%).
※ Main body comes together with chuck handle and attaching rod.
※ Above specifications can be changed without prior notice.
